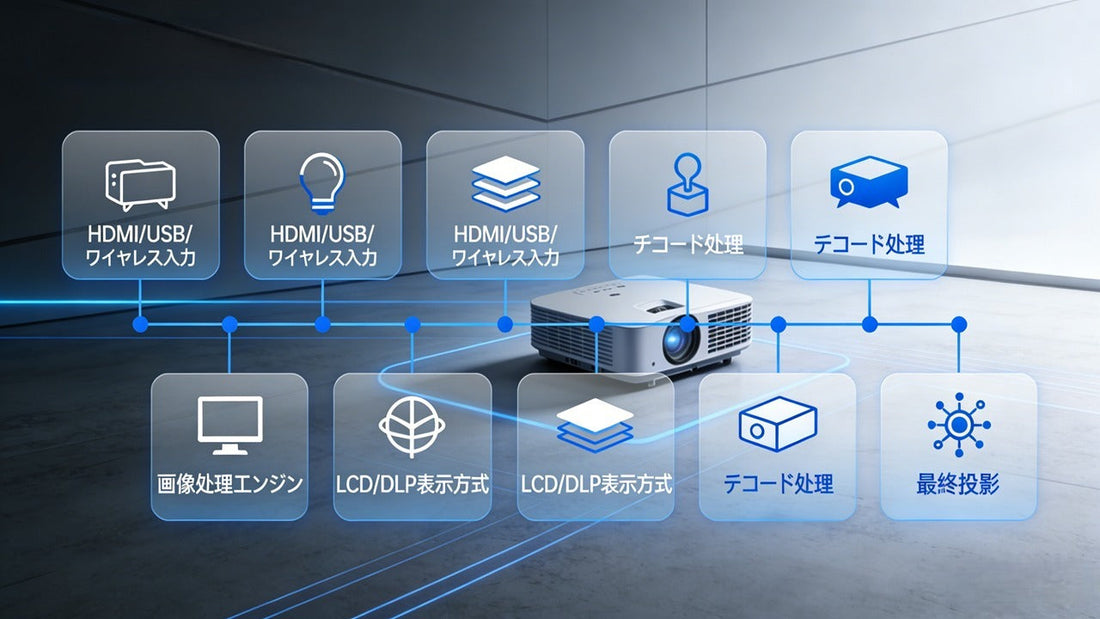

From input to image generation: A complete analysis of projector signal processing
Share
What happens before the image "appears"?
A projector is not merely a device that magnifies and projects an image. Input signals such as HDMI, USB, and wireless screen mirroring undergo multiple processing steps internally before finally being reconstructed as an "image" on the screen.
For those who have wondered "why there's a delay," "why resolution drops," or "why image quality changes with keystone correction," we will technically and accurately explain the signal processing flow.
1. Video Signal Input Stage | Differences between HDMI, USB, and Wireless
The signal processing of a projector varies significantly depending on where the video comes from.
Main Input Methods
- HDMI Input: Most stable. Ideal for low-latency gaming and presentations.
- USB Playback: Limited by supported codecs and resolution.
- Wireless Screen Mirroring: Prioritizes convenience but prone to delay.
For gaming, it is recommended to use → Wired HDMI connection + low-latency game mode.
▶ Related: Settings for Enjoying Games with Low Latency (Official FAQ)
2. Decoding Process | Converting Video into an "Understandable Form"
Input video signals cannot be displayed as-is. An internal chip (SoC) performs video codec decoding, frame rate alignment, and audio signal separation and synchronization.
Crucially, unsupported codecs cannot be played. Cases where "audio plays but no video" in USB videos almost always occur at this stage.
▶ Related: Reasons and Solutions for USB Videos Not Playing
3. Image Processing Engine | The Core Process that Determines Image Quality
The decoded video is sent to the image processing engine. Resolution conversion, contrast/brightness adjustment, noise reduction, and AI automatic image quality adjustment (for compatible models) are performed here.
* Automatic keystone correction and focus adjustment are also closely related to this process.
Important Note: → The stronger the keystone correction, the more pixel recalculations are involved, and image quality theoretically degrades slightly. This is not a product defect but a common characteristic of all digital corrections.
4. Display Method Differences | LCD and DLP Signal Processing Characteristics
The main display methods for home projectors are LCD and DLP.
Characteristics of LCD Method
- High color reproducibility
- Can produce high brightness
- Individual differences in corner focus are common (by design)
Aestiquo's home models employ the LCD method, and the phenomenon where "the center is sharp but the corners are slightly soft" is a structural characteristic.
▶ Detailed explanation: Reasons for Blurred Corners on Screen
5. Audio Signal Processing | Efforts to Prevent Video-Audio Mismatches
Video and audio are processed via separate paths and then synchronized at the end.
Common Issues:
- No sound when using Fire TV Stick
- Delay/disruption with Bluetooth speaker connection
Most causes are related to Dolby Digital output settings or Bluetooth band interference.
▶ Recommended Settings:
- Audio output: PCM / Stereo
- For movie viewing, built-in speakers or wired connection are most stable.
6. Final Projection | Lens and Light Source Create the "Visible Image"
In the final stage, the processed video signal is displayed on a panel and projected onto the screen through a lens. Projection distance, throw ratio, installation angle, and focus adjustment directly affect image quality.
Slanted installation + excessive correction can lead to image quality degradation, so straight-on installation is ideal whenever possible.
Understanding Signal Processing Helps You Master Your Projector
Projector image quality, delay, and audio desynchronization can all be rationally explained by understanding the "signal processing flow."
✔ Why wired connections are superior ✔ Why image quality changes with keystone correction ✔ Why there are video format restrictions
Understanding these will elevate your experience with home theater, gaming, and presentations.
